Globe Cables Limited

For further expansion and utilisation of copper & alluminium wire rod manufactured by our sister concern Globe Metal Complex Ltd., we have floated another company namely Globe Cables Ltd. to produce domestic, commercial, industrial copper & alluminium wires and cables like XLPE cables, super enamel wires, overhead and underground conductors of all ranges to meet local and export demand.

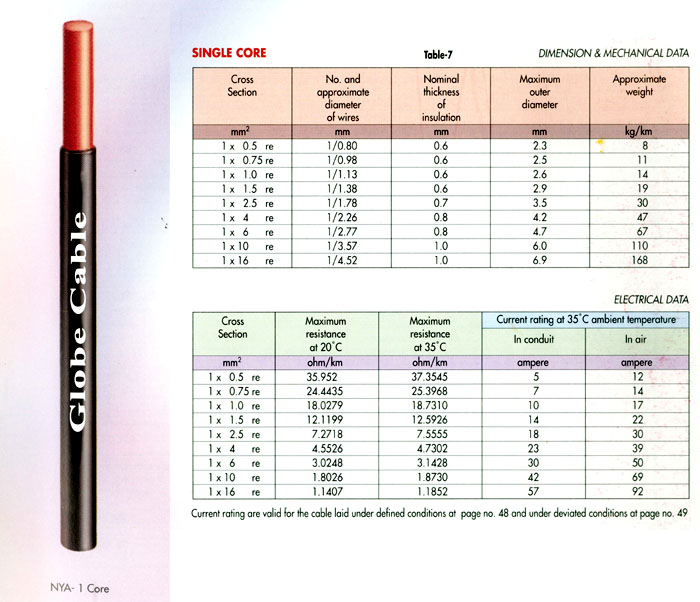

PVC Insulated Cables
Type : NYA 600 / 1000V
VDE 0250/06.97 BDS 901 : 85
Plain annealed Copper conductor, PVC insulated.
Suitable for use in motor and switch panels and in distribution equipment, cables of 1.5 mm2 and above are for use in steel conduit and over insulating bodies over plaster in dry rooms; for continuous permissible service voltage of 690/1150 volts.

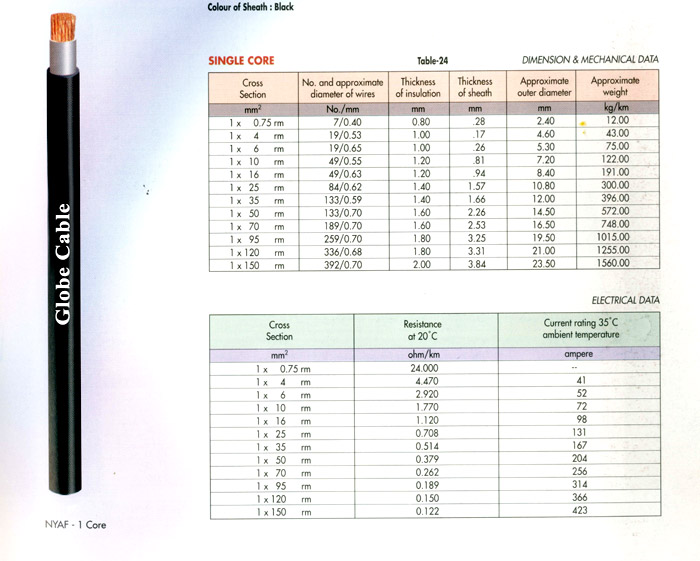

PVC Insulated and PVC Sheathed Flexible Cables
Type : NYAF 600/1000V
BS7870 – 6.1 : 99

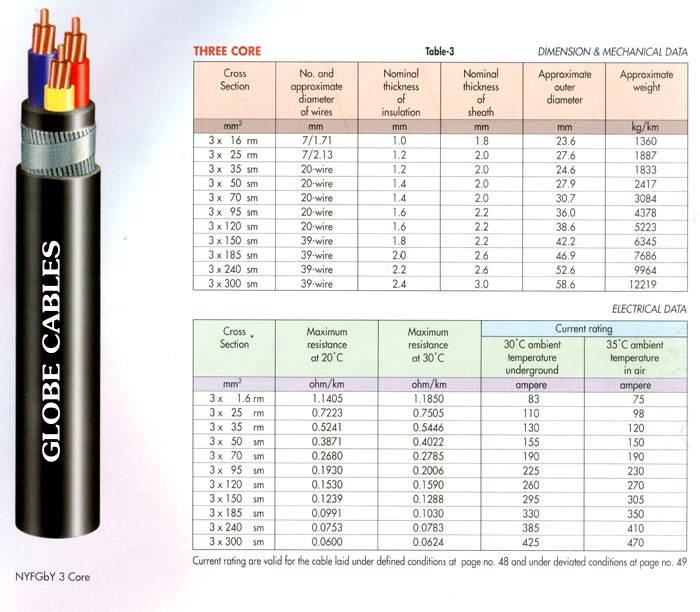

PVC Insulated and PVC Sheathed Armoured Cables
Type: NYFGbY 600/1000V
VDE 0271/06.97 BDS 901: 85
Plain annealed Copper conductor, PVC insulated, three, three and half or four cores laid up, bedded with PVC or tape, Flat wire armoring with helical steel taping and PVC sheathed.
Suitable for use in indoors, outdoors, underground and in water for continuous permissible service voltage of 720/1200 volts.

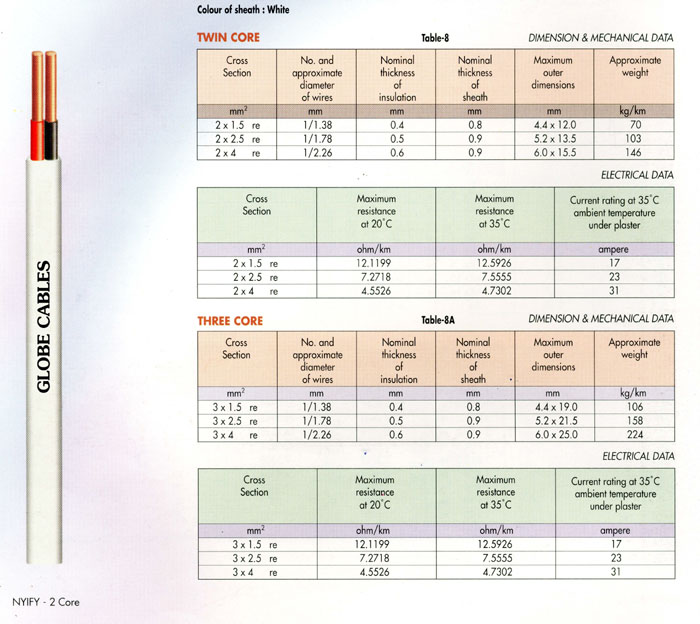

PVC Insulated and PVC Sheathed Cables
Type : NYIFY 220 / 380V
VDE 0250/06.97 BDS 901 : 85
Specification: Plain annealed Copper conductor, PVC insulated. Twin or three core flat cables and PVC sheathed.
Suitable for use in or under plaster in dry rooms; for continuous permissible service voltage of 225/440 volts. Not to be used in 400 circuits.

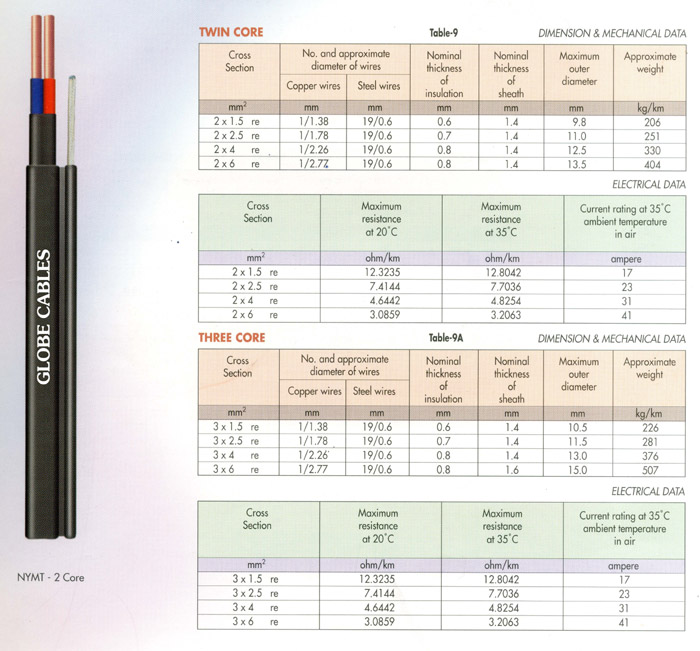

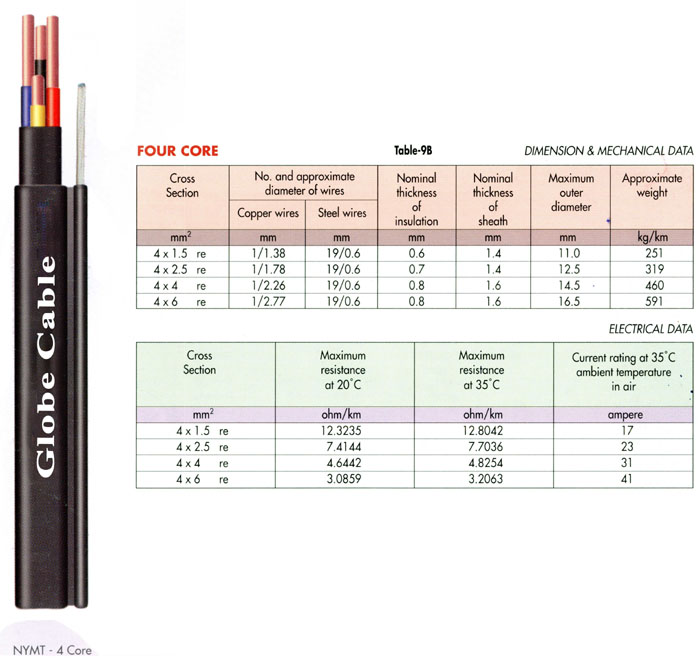

PVC Insulated and PVC Sheathed
Self Supporting Aerial Cables
Type: NYMT 300/500V
VDE 0250/06.97 BDS 901: 85
Plain annealed Copper conductor, PVC insulated. Two, three or four cores laid up, filled with PVC and PVC sheathed alongwith a galvanised steel wire rope under the sheath.
Suitable for use as self supporting aerial cable for continuous permissible service voltage of 345/575 volts.
PVC Insulated and PVC Sheathed Cables
Type : NYMT 300 / 500V
VDE 0250/06.97 BDS 901 : 85

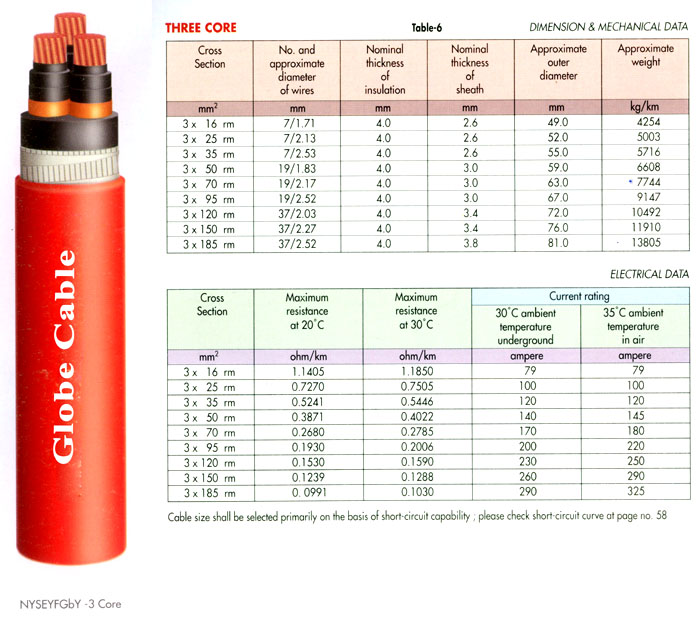

PVC Insulated and PVC Sheathed Armoured Cables
Type : NYSEYFGbY 5800 / 10000V (11KV H.T)
VDE 0271/06.97 BDS 901 : 85
colour of sheath : Red
Plain annealed Copper conductor, PVC insulated, field limiting semi-conductive layers over each conductor and core insulation, concentric shields of copper over individual cores, three cores laid up, PVC bedded. Flat wire armouring with helical steel taping and PVC sheathed.
Suitable for use in indoors, outdoors, underground and in water for continuous permissible service voltage of 7000/12000 volts. Used for 11KV service connection and 11 KV distribution system.
PVC Insulated and PVC Sheathed Armoured Cables
Type: NYCY 3500/6000V
VDE 0271/06.97BDS 901: 85
Plain annealed Copper conductor, PVC insulated, three cores laid up, Copper shield over common covering of cores and PVC sheathed.
Suitable for use in indoors, outdoors, underground and in water for continuous permissible service voltage of 4200/7200 V. Used for 3.3 KV or 6.6 KV circuits.

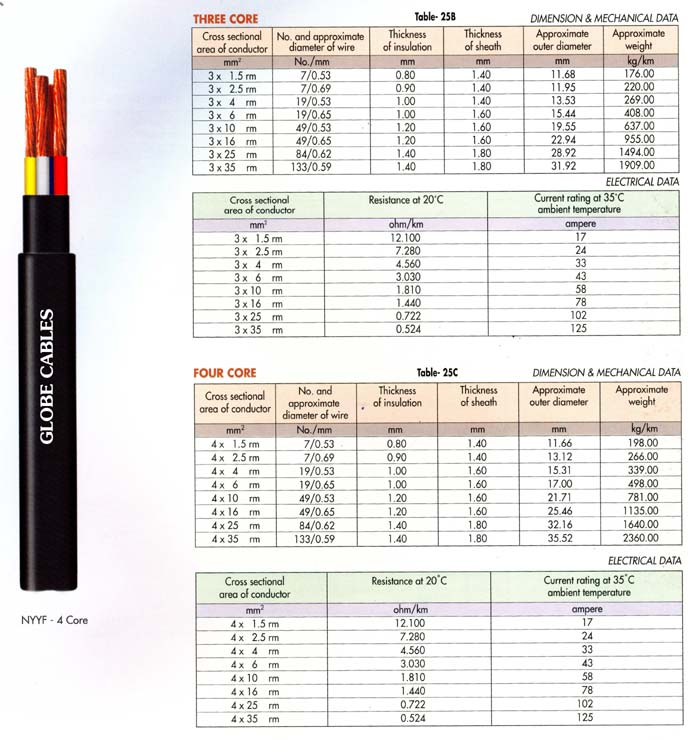

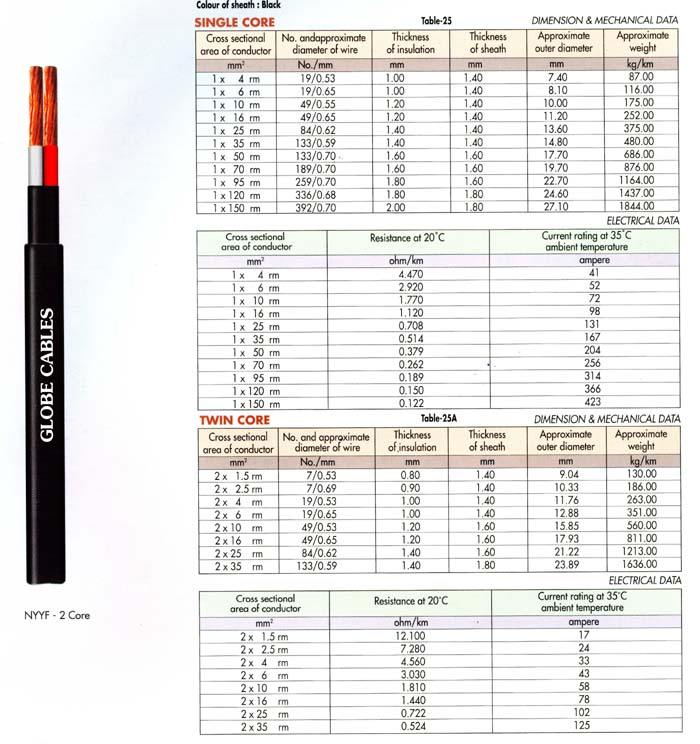

PVC Insulated and PVC Sheathed Flexible Cables
Type: NYYF 600/1000V
BS 7870-6.1:99 SINGLE/MULTICORE
Plain annealed flexible stranded copper conductor, PVC insulated, single, twin, three and four core laid up, filled with PVC or rubber where necessary and PVC sheathed, for permissible service voltage of 720/1200 volts.
For use in single/three phase connection, catenary power distribution cable with Gl. Catenary wire for cranes, hoists or any mobile overhead power driven equipment etc.
PVC Insulated and PVC Sheathed Cables
Type: NYYF 600/1000V
BS 7870-6.1:99 MULTICORE

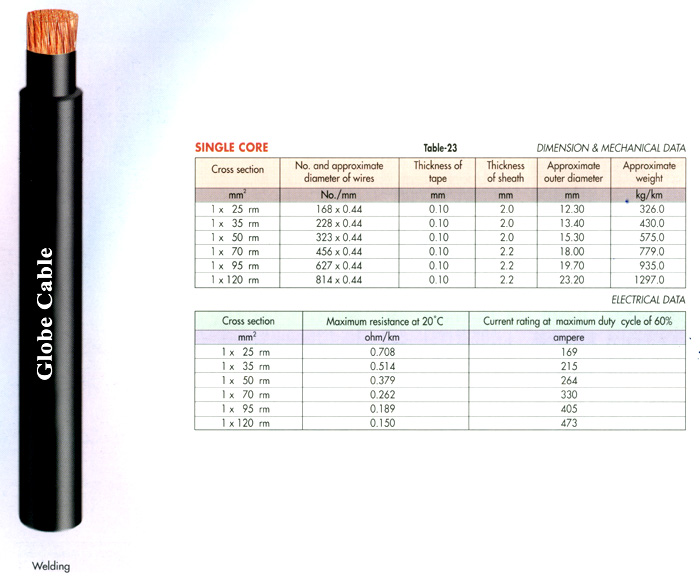

PVC Insulated and PVC Sheathed Cables
Type : WELDING CABLE 200V
IS 9857 : 1990

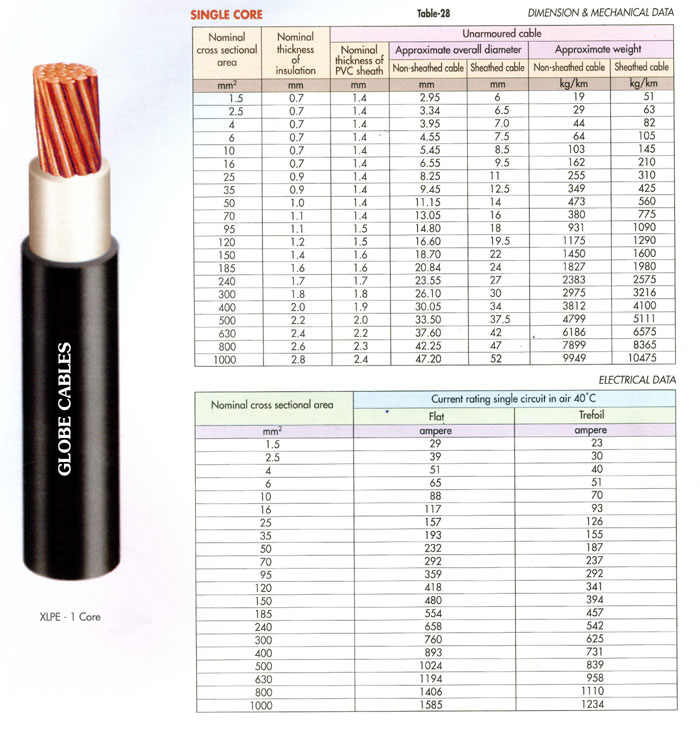

XLPE Insulated and PVC Sheathed Cables
Type: XLPE 600/1000V
IEC 60502-1 (1998-05)
XLPE insulated and PVC sheathed cable are manufactured.
Suitable for use in indoors, outdoors, underground and in water and chemically active area & at high ambient temperature. Maximum operating temperature 900 degreeC.

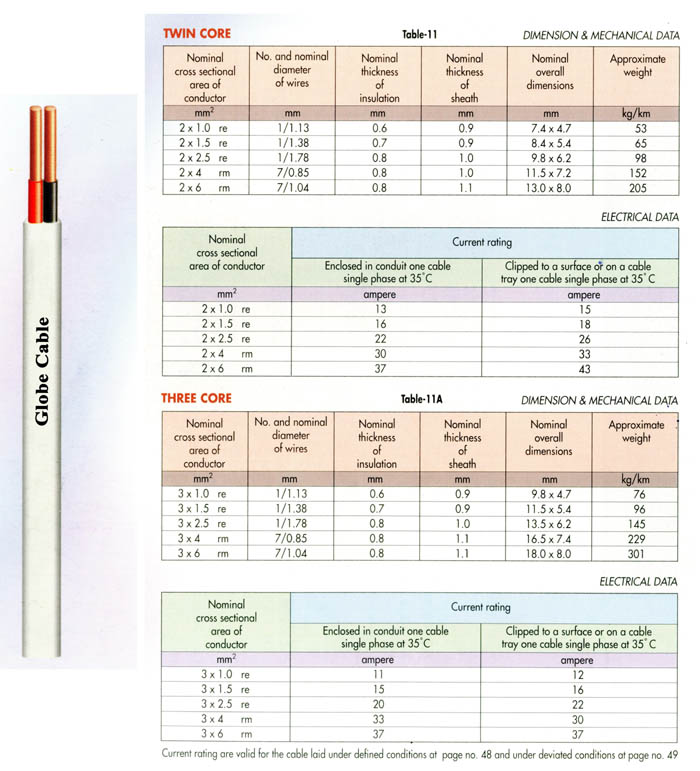

PVC Insulated and PVC Sheathed 2&3 Core Cables
Type : BYFY 300 / 500V
BDS 901 : 1979
Colour of sheath : Grey
Plain annealed Copper conductor, PVC insulated, two of three cores laid flat and PVC Sheathed.Suitable for use in fixed installations in dry or damp premises and for installation in walls or boards and in channel or embedded in plaster. not to be used in three phase 400 V circuits.

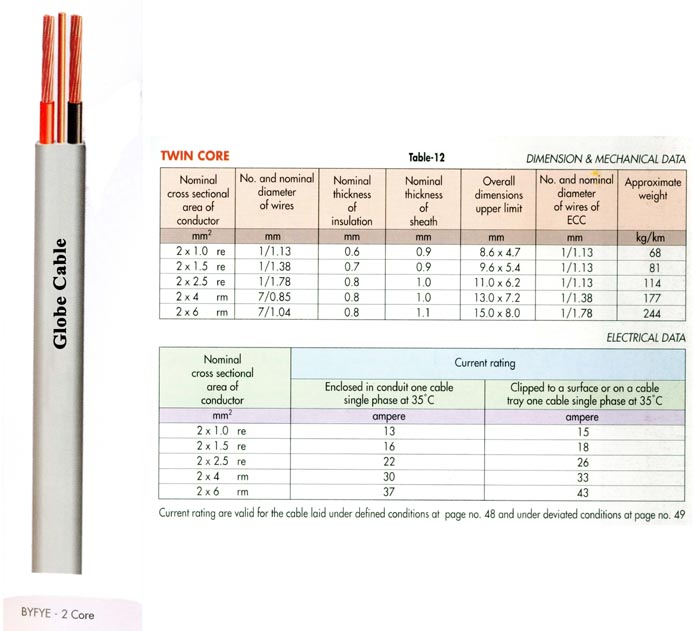

PVC Insulated and PVC Sheathed Cables
Type : BYFYE 300/500V
BDS 901 : 1985
Colour of sheath : Grey
Plain annealed Copper conductor, PVC insulated, two core flat cable with earth continuity conductor and PVC sheathed.
Suitable for use in fixed isntallations in dry or damp premises and for installation in walls, on boards and in channels or embedded in plaster. Not to be used in three phase 400 V circuits.

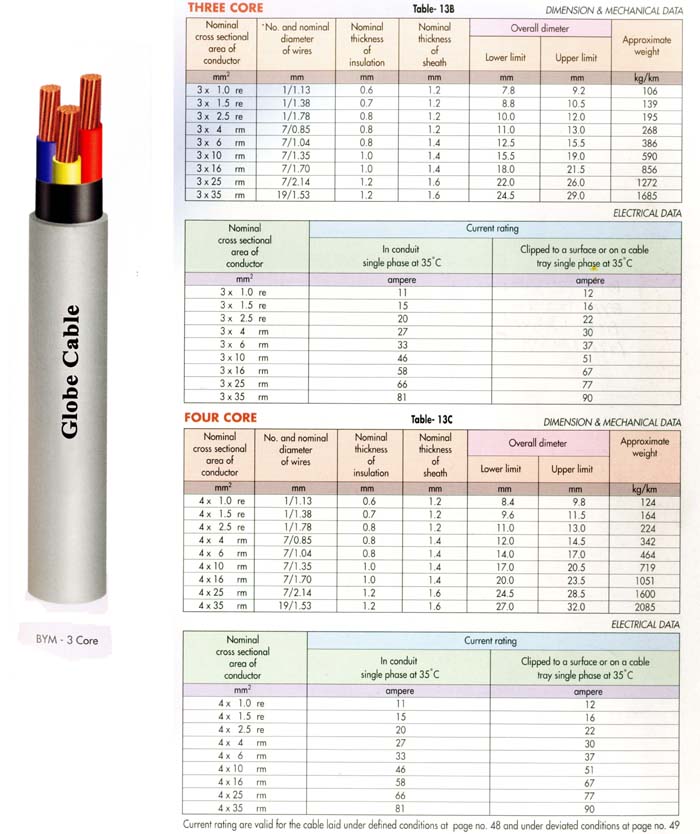

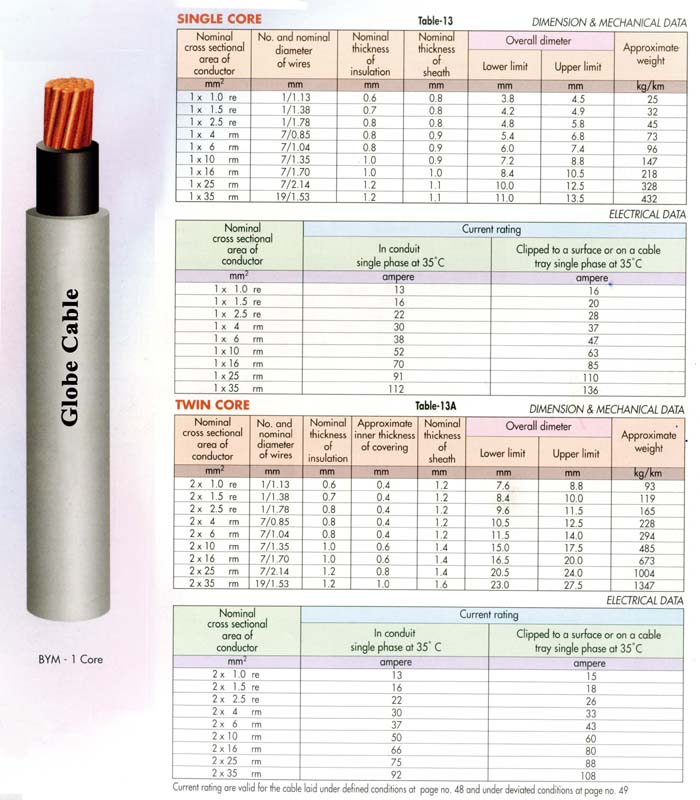

PVC Insulated and PVC Sheathed Cables
Type : BYM 300 / 500 V
BDS 901 : 1985
Colour of sheath : Grey
Plain annealed Copper conductor, PVC insulated, single, two, three or four cores laid up filled with rubber and PVC Sheathed.
Suitable for use in fixed installations in dry or damp premises clipped direct to a surface or on a cable tray unenclosed and also for use in non-metallic conduit (PVC). Not to be used in 400V circuits.
PVC Insulated And PVC Sheathed Cables
Type : BYM 300 / 500V
Service Drop Cables, PVC Insulated
Type : SERVICE DROP 600/1000V
BS 6004 : 95

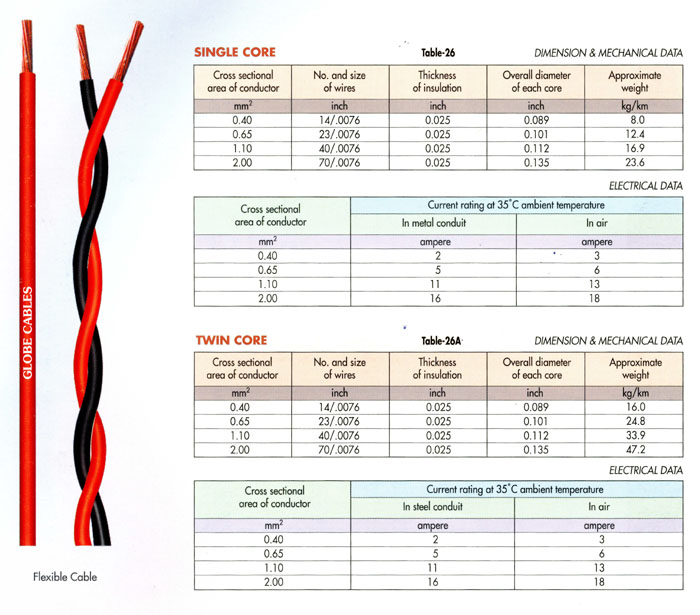

PVC Insulated Flexible Cables
Type: FLEXIBLE CABLE 250/440V
BDS 899:79
Plain annealed copper wire PVC insulated flexible single & twin core with suitable lay.

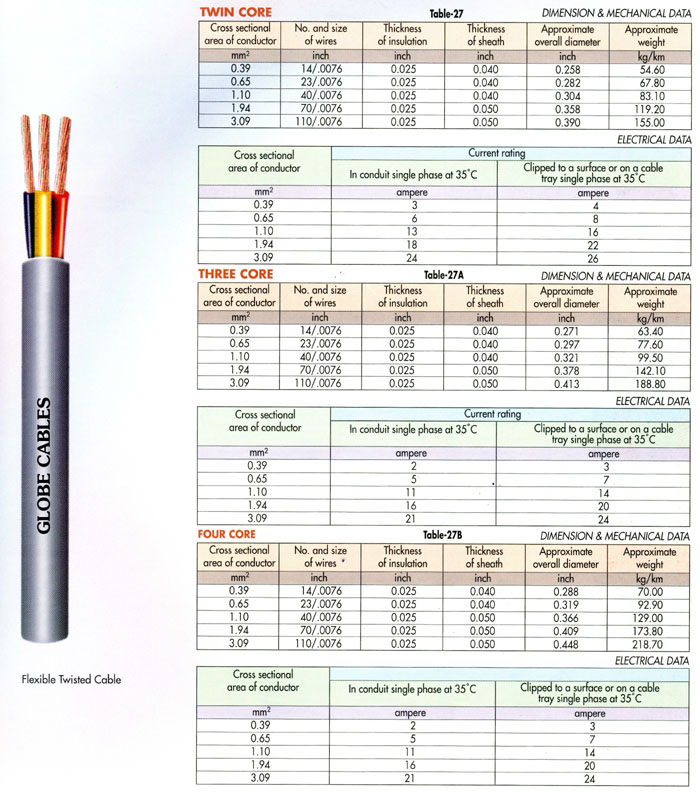

PVC Insulated and PVC Sheathed Flexible Cables
Type: FLEXIBLE CABLE 250/440V
BDS 899:79
Plain annealed copper wire (s) PVC insulated twisted with suitable lay and PVC sheathed, twin, three and four core Flexible cable (circular). Not to be use 400V cirtcuit.

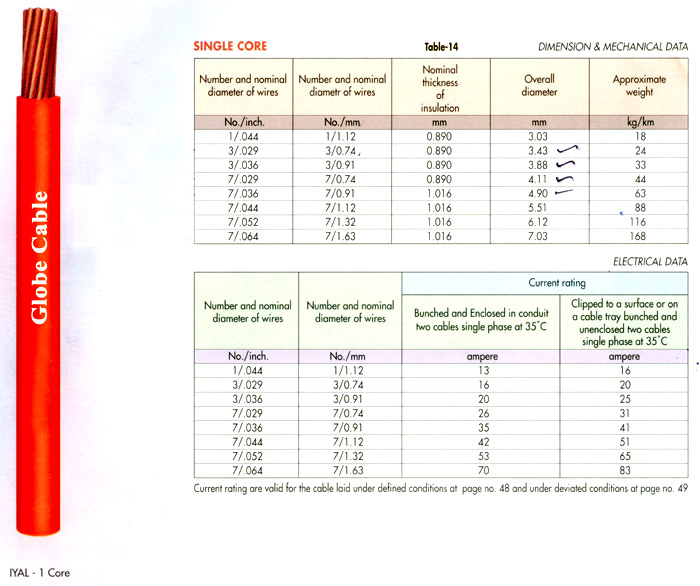

PVC Insulated Cables
Type : IYAl 250 / 440V
BS 6004 : 1995
Plain annealed Copper conductor, PVC insulated non-sheathed single core cable. suitable for use in steel conduit or trunking buched and enclosed and also for use clipped direct to a surface or on a cable tray bunched and unenclosed. Not to be used in three phase 400V circuits.
